Big Guns

Sprinkler Guns

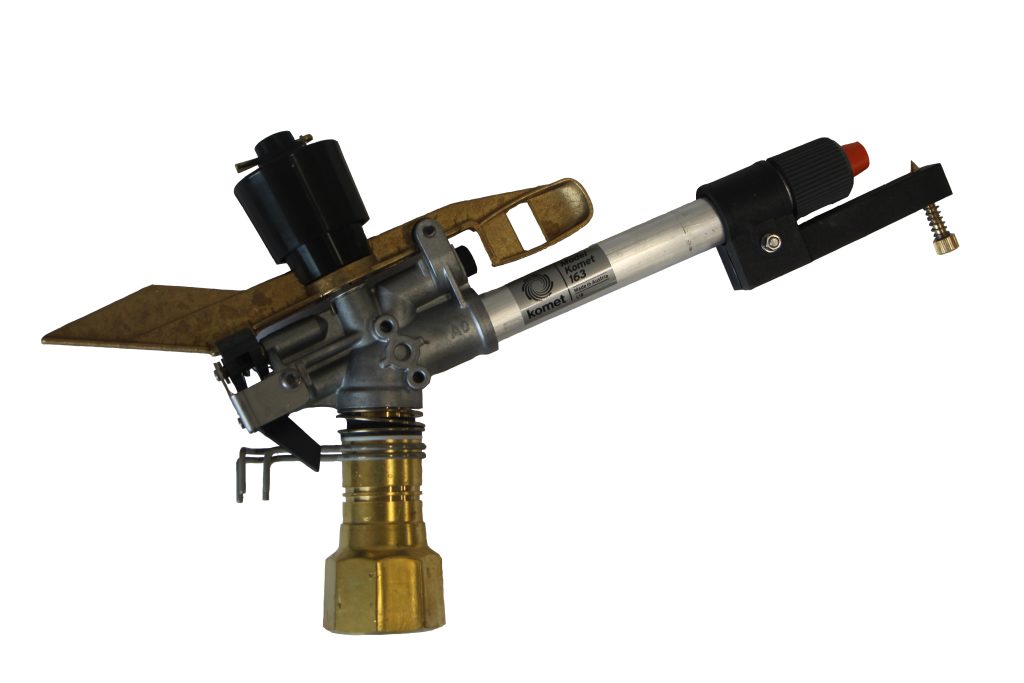

Komet #163 Full & Part Circle

This medium volume sprinkler gun is suitable for use in general field irrigation on solid set travelers, center pivots, etc. Changing from part to full circle is easy by adjusting trip stops. Komet #163 shows good performance on windy conditions. 1½” female NPT base.

* Stream-Breaker and 4 extra nozzles included

Model Item # Price
Komet 163 #KG163 $175.00
Additional Nozzle #60-18 $4.50

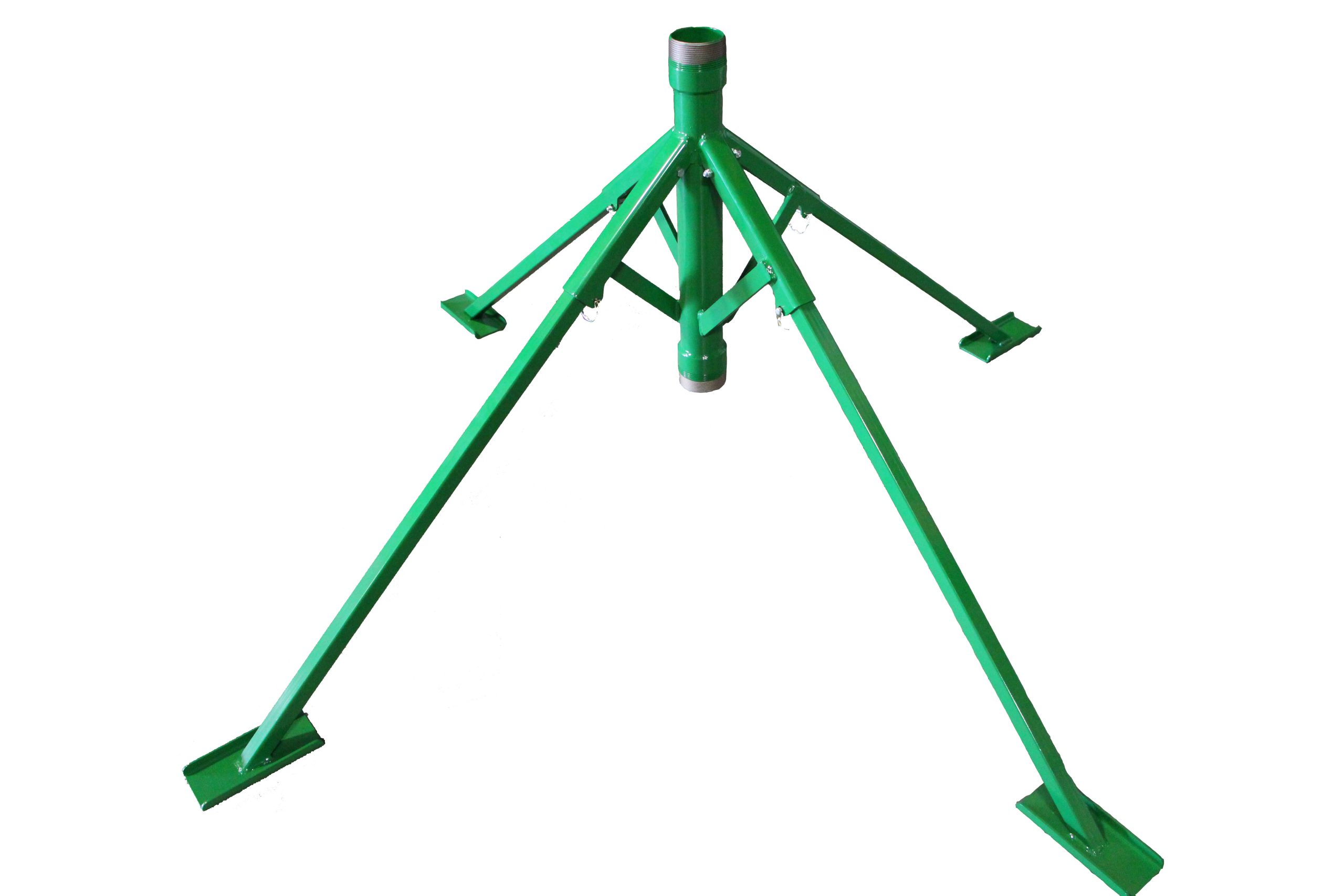

Foldable Gun Stand

This rugged stand will fold for carrying through standing corn. Is height adjustable and has flex-feet for stability. Includes PVC riser with 2” male NPT base connection. 1½” male NPT on top. Manufactured by Rain-Flo Irrigation.

Optional 1½” x 5’ aluminum riser pipe, a straight pipe with 1½” MPT ends

Model Item # Price
4 leg 7 Ft. base #GS20 $92.00
Optional w/ alum riser #GS2A $118.00

Twin Komet Big Guns

Twin Komet is one of the better big guns! Operates with lower pressure; hand-adjustable; very uniform spray. Braking system automatically adjusts to pressure.

* Price includes one extra nozzle.

Model Description Price
#TWMX Twin Max PC $655.00
#U101 Twin 101 Ultra $675.00
#U140 Twin 140 Ultra $870.00
#U160 Twin 160 Ultra $995.00
#U202 Twin 202 Ultra $1,125.00
Extra nozzles $17 -$20
Twin Komet Big Gun Specs

Nelson Big Guns

World’s Number One Gun In the field of high volume gun type sprinklers, Nelson Big Gun is recognized as the world’s leader in quality and performance. Nelson’s most advanced design, the SR Series BIG GUN is available in an expanded range of sizes including the SR100, SR150, and SR200. So whether you plan to use it on a traveler, as a center pivot end gun, on a solid set irrigation system, or for dust control or waste disposal, there’s a Nelson SR Series BIG GUN to handle the job. And you can be assured it is engineered and precision manufactured for heavy duty reliability and long wear life with minimum maintenance. Every Nelson BIG GUN is subjected to the toughest inspection, testing, and quality control standards in the industrial-strength individual water testing at the factory.

Model Description Price
#F75 Nelson 75 Series Full Circle Only $530.00
#SR75 Nelson 75 Series Part Circle W/ Reverse $655.00
#10208(specify size) Tapered Ring Only $13.25
#F100 Nelson 100 Series Full Circle Only $560.00
#SR100 Nelson 100 Series Part Circle W/ Reverse $830.00
#9309(specify size) Nelson 100 Series Taper Ring Nozzle Only $31.00
#9237(specify size) Nelson 100 Series Taper Ring Nozzle Only $13.75
#6847 Nelson 100 Series Set of 7 Rings, Without Holder $38.00
#6749 Nelson 100 Series Set of 7 Rings, With Holder $74.00
#F150 Nelson 150 Series Full Circle Only $1,075.00
#SR150 Nelson 150 Series Part Circle W/ Reverse $1,310.00
#9317(specify size) Nelson 150 Series Taper Bore Nozzle Only $52.00
#9238(specify size) Nelson 150 Series Taper Ring Nozzle Only $16.50
#6846 Nelson 150 Series Set of 7 Rings, Without Holder $72.00
#6790 Nelson 150 Set of 7 Rings, With Holder $122.00
#SR200 Nelson 200 Series Part Circle W/Reverse $2,415.00
#9323(specify size) Nelson 200 Series Taper Bore Nozzle Only $80.00
#6845 Nelson 200 Series Set of 7 Ring, Without Holder $114.00
#6789 Nelson 200 Series Set of 7 Rings, With Holder $174.00
Nelson Big Guns Specs
